ABB
BM/A4.1-135

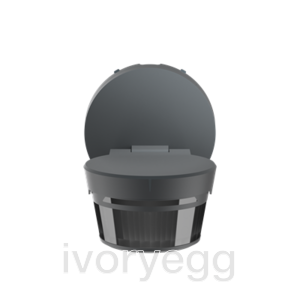

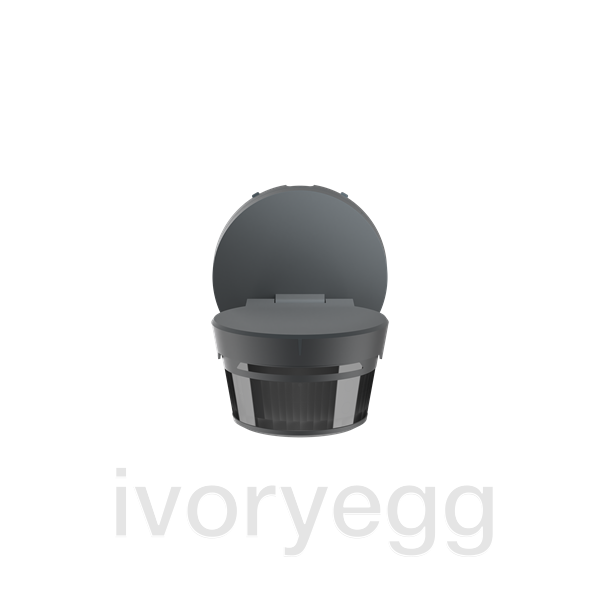

Busch-Watchdog PRO 280 ° Motion detector anthracite
Product code:
2CKA006132A0428
4 Channel KNX movement detector for indoor and outdoor area.
Description
- For automatic switching of ABB-i-bus KNX® actuators dependent on movement and brightness.
- With 1 twilight / brightness channel with three switching thresholds.
- With 1 temperature channel with three switching thresholds.
- Remote operation via the Bluetooth and SmartConnect smartphone/tablet app
- Up to 10 KNX functions controllable via app.
- Programmable status RGB Led. (5 functions)
- With high-quality lens for optimum detection.
- Level balancing of the device +/- 30°.
- Horizonatal orientation of the optical system +90°/- 60°.
- Vertical orientation of the optical system +30°/- 30°.
- With ground and rear-field detection.
- Additional possibility for switch-on via push-button object.
- The bus can be connected via enclosed terminal block.
Technical Details
Specification
Surveillance density: 110 sectors with 440 switching segments.
Detection area: frontal: 16 m, lateral: 16 m
Installation height: 2,5 m
Twilight limiting values: 1 - 1.000Lux
Brightness limiting values: 1.000 - 100.000
Sensor angle: 280°
Number of PIR: 4
Bus voltage: 24 V
With integrated KNX bus coupler.
No additional power supply necessary.
Power consumption: 0,3 W
Current: 12mA
Protection class device: IP 55
Temperature range device: -25°C - 55°C
Storage temperature device: -25°C - 70°C
Dimensions (H x W x D): 124mm x 110mm x 158mm
Properties
Properties
| Technology | KNX |
| Brand | ABB |
| Finish | Black |
