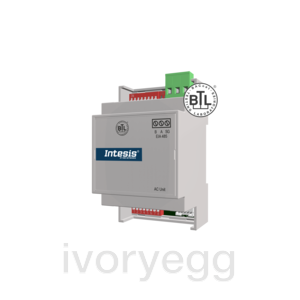

Daikin AC Domestic units to BACnet MSTP Interface
The previous part number for this item was DK-AC-BAC-1L, IBBACDAI001I100
Description
FEATURES
- BTL mark ensures full interoperability with BACnet devices.
- Support BACnet IP and BACnet MS/TP.
- Configuration from onboard DIP-switches.
- Quick and easy installation (plug and set the DP-SW).
- External power not required.
- Simultaneous control of the AC unit by the IR remote controller and by BACnet IP or MS/TP.
- Reduced dimensions 93 x 53 x 58 mm.
- Mountable on DIN rail, wall, or even inside the indoor unit in some models of AC.
- Abstraction of Air Conditioning unit properties and functionalities as fixed BACnet Objects.
- Occupancy function allows energy savings. Costs related to HVAC systems in a building are one of the highest and this type of functions allow to reduce them.
- Total control and monitoring of the AC unit from BACnet, including AC unitÕs internal variables, running hours counter (for filter maintenance control) and error indication.
DIRECT CONNECTION TO INDOOR UNITS
The gateway is wired directly to a Daikin indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpointÉbut the monitoring of errors, alarms and some internal variables.
FAST AND EASY TO SET UP BY DIP-SW
The product can be installed and set up in a really short time. ItÕs only a matter of wiring the gateway to the AC unit and configure the DIP-SW accordingly. No configuration software and no power supply are required.
Technical Details
Specification
Enclosure:
- Plastic, type PC (UL 94 V-0)
- Net dimensions (dxwxh): 93 x 53 x 58 mm / 3.7Ó x 2.1Ó x 2.3Ó
- Colour: Light Grey. RAL 7035
Weight85 g.
MountingWall. DIN rail EN60715 TH35.
Terminal Wiring (for low-voltage signals):
- For terminal: solid wires or stranded wires (twisted or with ferrule)
- 1 core: 0.5mm2... 2.5mm2
- 2 cores: 0.5mm2... 1.5mm2
- 3 cores: not permitted
BACnet MS/TP port: 1 x EIA485 Plug-in screw terminal block (2 poles + GND) with 120 ½ resistor termination and polarisation selectable by switch.
AC unit port: 1 x Specific connector Specific cable included
Switch 1 (SW1): 1 x DIP-Switch for Air Conditioner Unit + Bacnet baud rate
Switch 3 (SW3): 1 x DIP-Switch for Bacnet MAC address + temperature magnitude (oC/oF).
Operation Temperature: 0oC to +70oC
Stock Temperature: -20oC to +85oC
Operational Humidity: <95% RH, non-condensing
Stock Humidity: <95% RH, non-condensing
Isolation voltage: 1500 VDC
Isolation resistance: 1000 M½
Protection: IP20
LED indicators: 2 x Onboard LED - Operational status.
Properties
Properties
| Technology | Open Protocols |
| Brand | INTESIS |
| Mounting | DIN Rail |
| IP rating | IP20 |
| Mounting Width | 4MW |
