FARADITE
M360-W-CRES

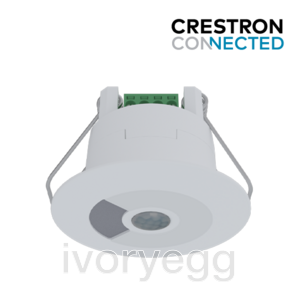

Motion Sensor 360 - Cresnet - White
Product code:
M360-W-CRES
The Motion Sensor 360 Cresnet® is a sensing solution designed for seamless integration with Crestron and Crestron Home® systems, delivering discreet automation with minimal visual impact.
Description
It features a motion sensor, brightness sensor and a temperature sensor*
It supports advanced control such as forced occupancy and vacancy modes, particularly useful when used alongside keypads.
It is designed for discrete installation supporting automation across lighting, heating, AV, and more.
Key Features
- Flush design
- PIR motion detection for lighting, HVAC, and AV automation
- Control lighting, scenes, and wider system automation
- Seamless integration with Crestron and Crestron Home® via Cresnet®
- Integrated temperature sensor*
- Integrated brightness sensor
- Two channel control of a fan and a light with separate timeouts.
*Temperature sensor not available when used within Crestron Home®.
Technical Details
Specification
Power supply (consumption): 24V DC (5ma)
Brightness Sensor Range: 0 - 2000LUX
Ambient temperature: 0-50 °C (indoor only)
IP rating: IP20
Range (Note 1): 5M
Max mounting height: 3m (for optimal performance)
Mounting hole: 35mm / 1 1/2” (Fire rated: 40mm)

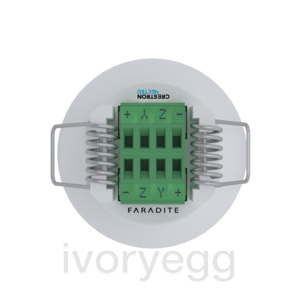

Connectors: 2 x 4 pin terminal blocks
Standards: EN 61000-6-1 EN 61000-6-3
Properties
Properties
| Brand | FARADITE |
| Technology | Other Control |
| Finish | White |
