GIRA
206905
Gira G1 in Black Glass - Power over Ethernet (POE)
Product code:
206905
The G1 is a ground breaking stylish all in one touch screen for control of core KNX building functions and Door Communication.
The user interface is very intuitive and iOS like in its use and will be instantly familar to anyone with a smart phone.
Description
Key Features

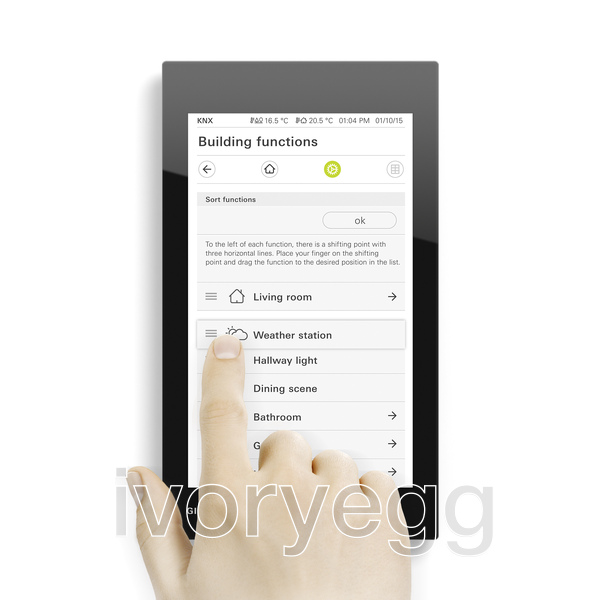

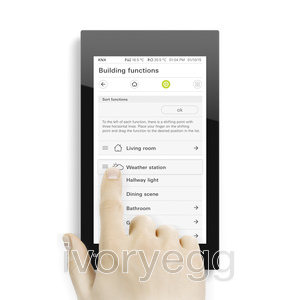

- Operation is via a gesture-capable multi-touch display.
- Connection and communication via Ethernet LAN.
- Integrated loudspeaker.
- Integrated microphone with echo compensation.
KNX features
- Intuitive user interface that can be adapted by the end user.
- Switching, dimming, blind and shutter control, value transmitter, scene auxiliary unit.
- Status display, display of date and time, display of indoor and outdoor temperature.
- Up to 125 functions (five function folders or rooms with up to 25 functions each).
- Up to 125 seven-day time clocks with 10 switching times each.
Room Temperature Control (only as extension)
- Use as room temperature controller auxiliary unit in combination with KNX 3 Plus push button sensor for room temperature measurement and control.
- Operating mode changeover: comfort, standby, night, and frost or heat protection.
- Operating modes can be adapted individually.
- Comfort extension using the presence button.
- A heating clock as seven-day time clock with 28 switching times.

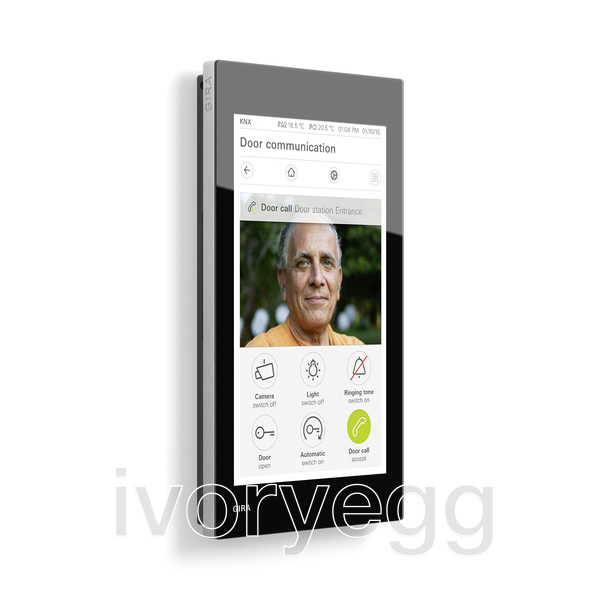

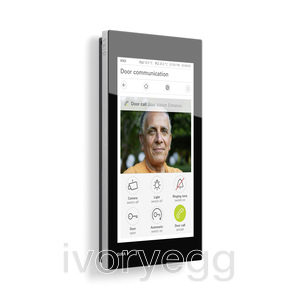

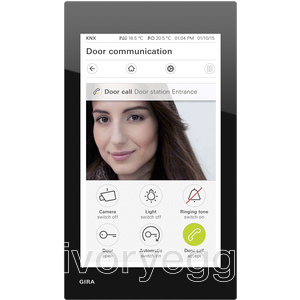

Door Entry Video Home station
- Selection of specific connected colour cameras.
- Control of the door opener.
- Switching the ringing tone on and off.
- Ringtone can be selected from a choice of 10 melodies.
- Call answer.
- Volume setting of ringing tone and voice volume.
Internet services
- Gira weather service: Display of the weather forecast for up to five cities.
- Data communication via LAN.
Technical Details
Specification
Power consumption
- Maximum: 7W
- Typical: 4W
- Minimum: 2 W
Display
- Type: TFT
- Size: 15.3 cm (6″)
- Colours: 16.7 M
- Resolution: 480 x 800 px (WVGA), 155 ppi
- Brightness: 350 cd/m²
- Contrast ratio: 1:500
- Viewing angle: > 80° all around
- Proximity sensor Range: max. 50 cm
- Range of detection: 30° horizontal, 30° vertical
- KNX standard Data Points: 5.010, 6.010, 5.001, 5.004, 9.001
- Protection type: IP21
- Ambient temperature: 0 °C to +45 °C
Power supply
- PoE performance class 0: 48VDC PoE
- LAN standard: IEEE 802.3af
Connections
- Ethernet via screw terminals with cable clamp: Cat.5e, Cat.6, Cat.6a, Cat.7
Dimensions
- Width: 97mm
- Height: 168mm
- Total Depth: 47mm
- Depth from front surface to wall: 15mm
Scope of Supply
- Display module
- Mounting frame
- Flush-mounting connection module (requires round european backbox)
Properties
Properties
| Technology | KNX |
| Brand | GIRA |
| Finish | Black Glass |
| Frame finish | Polished Aluminium |
| Switch action | Touch |
| Display | Colour TFT |
| Back Box | Round European |
| Input voltage | POE (48VDC) |
| EAN | 4010337014270 |
Documents & Downloads
Downloads
Gira G1 in Action
Interactive training
About this training
You get to know the setup of the G1.
You get to know the user interface.
You get to know the Gira Project Assistant.
Interactive training G1 and KNX
About this training
You get to know the setup of the G1.
You get to know G1 Insertion into the ETS
You get to know the G1 user interface
