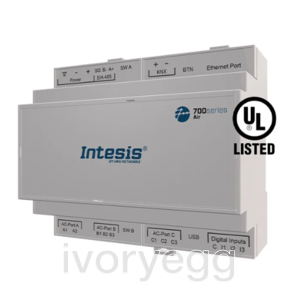

INTESIS
IN770AIRXXSO000
Multi-brand AC interface with KNX, Serial and IP support - Up to 15 groups
Product code:
IN770AIRXXSO000
This gateway connects to the Outdoor AC unit’s communication bus to monitor and control up to 4 indoor units individually. With Mitsubishi Electric, the gateway connects to their centralized controllers, allowing to monitor and control up to 15 Mitsubishi Electric groups (check the gateway’s user manual for information about the compatible centralized controllers).
Description
- UL Listed.
- The interface is able to manage Modbus TCP and Modbus RTU simultaneously.
- Scan: Automatic identification of the units presents on the VRF system.
- Energy consumption signals from each indoor unit are available.
- Outdoor unit’s signals available for the integration.
- Integration with any IP Home Automation System thanks to our open ASCII protocol.
- Compatible with the drivers available at Intesis webpage.
- Direct ethernet connection to the home’s local IP network.
- Up to 6 TCP clients (incoming sockets) are supported.
- Configuration through IP or USB (Console) port.
- Easy integration with Intesis MAPS.
- Automatic updates for both Intesis MAPS and interface’s firmware.
Technical Details
Specification
AC Model Compatibility
List of compatible centralised controllers:
- G-50
- G-50A
- GB-50A
- GB-50ADA
- AB-150
- AE-200
- AE-50
- AG-150A
- EW-50
- EB-50GU.
Properties
Properties
| Technology | KNX |
| Brand | INTESIS |
| Mounting | DIN Rail |
| Mounting Width | 8MW |
