THEBEN
6489130

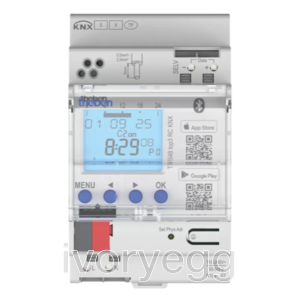

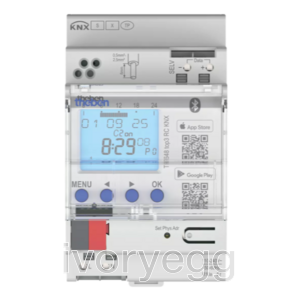

TR 648 top3 RC KNX Digital time switch
Product code:
6489130
Digital time switch with yearly and astronomical time program, App programming possible thanks to integrated BLE module
Description
- Digital time switch with yearly and astronomical time program
- App programming possible thanks to integrated BLE module
- Secure commissioning and communication through support of KNX Data Secure
- Time synchronisation via connection of external DCF or GNSS/GPS antennas, additional posititioning for astronomical program with GNSS/GPS
- 8 channels
- DuoFix spring terminals for 2 conductors each
- Text-oriented user guidance in display
- 800 memory locations
- Interface for OBELISK top2 memory card (PC programming)
Technical Details
Specification
Operating voltage KNX: Bus voltage, ≤10 mA
Operating voltage: 110 V AC - 240 V AC
Frequency: 50 - 60 Hz

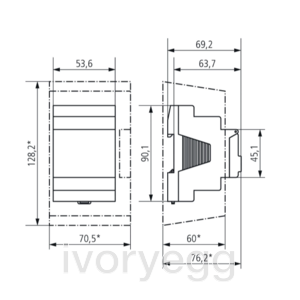

Width: 3 modules
Installation type: DIN rail
Number of channels: 8
Number of memory locations: 800
Time accuracy at 25 °C: typical ± 0,25 s/day (quartz) or DCF77/GPS
Shortest switching times: 1 s
Display: LCD
Ambient temperature: -5°C ... 45°C
Type of protection: IP 20
Protection class: II according to EN 60 730-1
Properties
Properties
| Brand | THEBEN |
| Technology | KNX |
| Mounting | DIN Rail |
| Input voltage | 230VAC |
| IP rating | IP20 |
| Mounting Width | 3MW |
