DM 4 T KNX
KNX 4 x 400W Dimmed channels
Product code:
4940275
4-way universal dimmer actuator. For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps - Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
Description

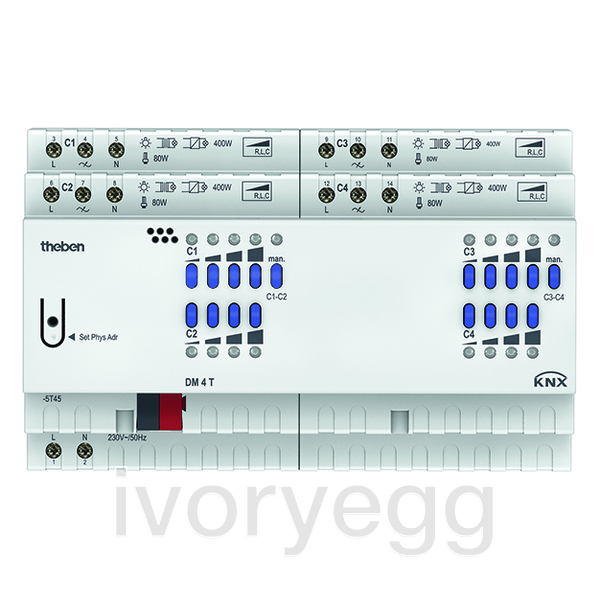

- 4-way universal dimmer actuator FIX2
- For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
- Also suitable for dimming of dimmable energy-saving lamps
- Also suitable for controlling fans
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
- Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
- Automatic load detection (can be deactivated)
- For R, L and C load
The dimming output can be upgraded by using additional dimmboosters “DMB 1 T KNX.”
When dimming LEDs - dimming output is increased by 45 W/VA for each dimmbooster. Output up to a maximum of 980 W/VA is possible by using the maximum of 4 boosters together with 2 dimmer channels joined in parallel operation mode.
When dimming incandescent lamps, halogen lamps, inductive loads or electronic transformers - dimming output is increased by 300 W/VA for each dimmbooster. Output up to a maximum of 2000 W/VA is possible by using the maximum of 4 boosters together with 2 dimmer channels joined in parallel operation mode.
It is not possible to use dimmboosters with dimmable energy saving/Compact Fluorescent lamps.
Technical Details
Specification
- Operating Voltage: 230VAC 50HZ
- Power Consumption: 1.5W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 4mA
- Outputs: 4
- Dimming Capacity Per Channel: 400W
- Dimming Capacity in Parallel Operation: 800w
- Dimming Capacity Dimmabte Energy Saving Lamps: 80W
- Dimming Capacity in Parallel Dimmabte Energy Saving Lamps: 140w
- Dimming Capacity in Parallel 230V LEDs Leading Edge Control (L): 120W
- Dimming Capacity 230V LEDs Leading Edge Control (L): 60W
- Dimming Capacity in Parallel 230V LEDs Trailing Edge Control (RC): 800W
- Dimming Capacity 230V LEDs Trailing Edge Control (RC): 400W
- Dimming Capacity Minimum: 5W
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Dimming Type | Mains |
| Mounting | DIN Rail |
| Input voltage | 230VAC |
| Outputs | 4 |
| IP rating | IP20 |
| Mounting Width | 8MW |
Documents & Downloads
Downloads
Technical documentation and installation instructions
