THEBEN
HMG 6 T KNX

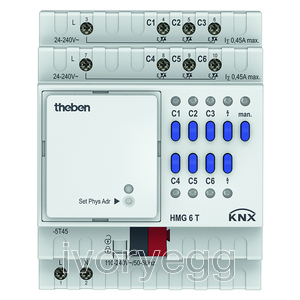

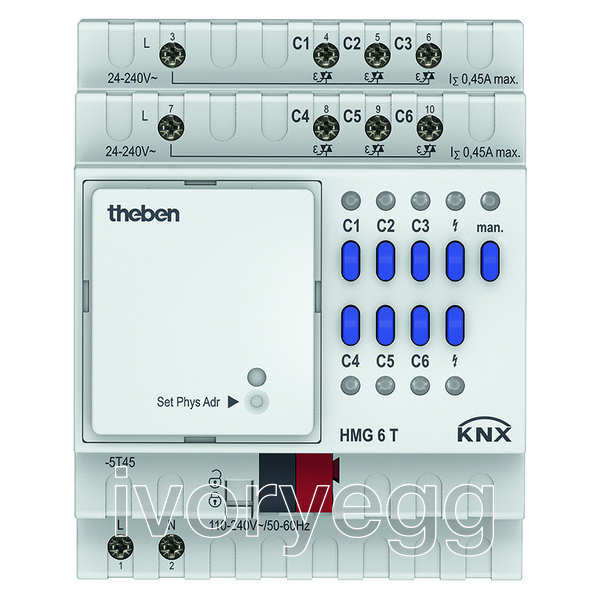

KNX 6-way heating actuator Base Module MIX2
Product code:
4930240
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Description
- 6-way heating actuator MIX2
- With 6 temperature controllers (P/PI) for heating and cooling
- Base module MIX2
- Can be upgraded to maximum of 18 channels
- For controlling 6 thermal actuators 24V-240V in 2 groups each with 3 outputs and 450 mA each
- ( Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3 x 1 actuators 24VAC or 3 x 5 actuators 230VAC)
- Short-circuit-proof and overcharge protected
- Continuous or switching actuating value selectable
- Valve protection function can be deactivated
- With the modes: comfort, standby, night as well as frost/heating protection
- Changeover to summer mode possible
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other
- Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of actuator is possible without KNX bus module
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
Technical Details
Specification
- Operating Voltage: 110 - 240 VAC
- Power Consumption: 0.3W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 4mA
- Outputs: 6 (2 Groups of 3)
- Type of Output: Triac,
- Output Rated Voltage: 24VAC - 240VAC
- Current Rating: 0.45 A
- Suitable for SELV: Yes, if all inputs are connected with SELV
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Mounting | DIN Rail |
| Input voltage | 230VAC |
| Outputs | 6 |
| HVAC support | Regulation |
| IP rating | IP20 |
| Mounting Width | 4MW |
