THEBEN
1030072
LUXA 103 S360-100-28 DE-UP Passive infrared presence detector, white
Product code:
1030072

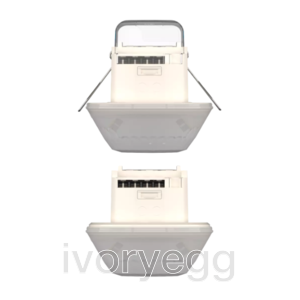

Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame.
Description
- Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
- 1 channel light (relay 230 V)
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
- Networking with wall detector theMura Slave possible
- Connection option for push-button for manual switching
- Operation as fully or semi-automatic possible
- One directional brightness measurement (mixed light measurement)
- Teach-in function, pulse function, test function, staircase lighting function
- Ready for operation immediately due to factory presetting
Technical Details
Specification
Operating voltage: 230 V AC
Frequency: 50 Hz
Stand-by consumption: ca. 0.5 W
Light measurement: Mixed light measurement
Colour: White
Installation type: Ceiling installation
Setting range brightness: 5 lx - 1000 lx
Detection angle: 360°
Installation height: 2.5 - 3.5 m
Switching output: Light
Light switch-off delay: 15 s - 30 min
Incandescent/halogen lamp load: 2300 W
Inrush current: max. 500 A / 200 µs
LED lamp 2-8 W: 400 W
LED lamp > 8 W: 400 W
Lamp types: Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Detection range: 140 m² (28,0 x 5 m)
Detection range: Rectangular
Remote controlled: Yes
Ambient temperature: -25°C ... 55°C
Type of protection: IP 54 (when fitted)
Properties
Properties
| Brand | THEBEN |
| Technology | 230VAC |
| Frame finish | White |
| Mounting | Flush |
| Input voltage | 230VAC (50Hz) |
| HVAC support | Temp Sensing |
| Buscoupler | Included |
| IP rating | IP54 |
