KNX Presence detector (PIR) for installation in suspended ceilings indoor

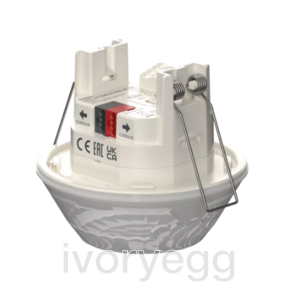

THEBEN LUXA 103 S360-28 KNX DE

KNX Presence detector (PIR) for installation in suspended ceilings indoor

Product code: 1039073
Presence detector (PIR) for ceiling installationin suspended ceilings indoor
Price (Excluding GST)
$P.O.A

Description

  • Rectangular detection area 360°, 28 x 5 m (140 m2) at 3 m mounting height
  • For KNX bus system, 2 light channels and 2 presence channels for HVAC control
  • 2 channels light with 1 light measurement
  • Automatic lighting control with constant light control or switching mode
  • Dimmable lighting in switching mode with and without daylight influence
  • Integrated temperature sensor
  • Day / night switching via telegram
  • Stand-by functionality (orientation light)
  • 3 logic channels (AND/OR/XOR)

Technical Details

Specification

Installation height: 2 - 4 m
Minimum height: 1.7 m
Measuring range brightness: 5 - 1000 lx
Detection angle: 360°
Type of connection: KNX bus terminal
Installation type: Ceiling mounting
Light measurement: Mixed light measurement
Switch-on delay presence: 10 s - 30 min / inactive
Ambient temperature: -25°C ... 55°C
Detection range: 140 m² (28 x 5 m | 360°)
Colour: White
Type of protection: IP 54 (when fitted)
KNX Data Secure: Yes

Properties

Properties

Technology KNX
Brand THEBEN
Frame finish White
Mounting Flush
Input voltage KNX Bus (29VDC)
HVAC support Temp Sensing
Buscoupler Included
IP rating IP54
KNX Secure Yes
