THEBEN
RMG 8 S KNX

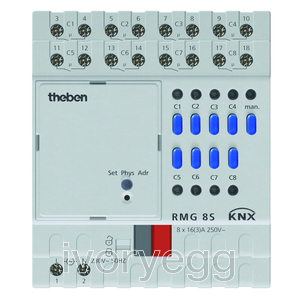

KNX 8-way switching actuator Base Module MIX2
Product code:
4930220
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating and Binary Inputs.
Description
- 8-way switching MIX2
- Base module MIX2
- Can be upgraded to maximum of 24 channels
- Up to two extension modules MIX or MIX2 can be connected to one base module
- Device and KNX bus module can be swapped independently of each other, Removable KNX bus module enables devices to be changed without reprogramming
- Manual set-up and use of actuator is possible without KNX bus module
- LED switching status display for each channel
- Manual operation on device (even without bus connection)
Technical Details
Specification
- Operating Voltage: 110 - 240 VAC
- Power Consumption: .3W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 4mA
- Outputs: 8
- Output Rated Voltage: 240VAC
- Type of Contact: NO contact, Potential Free
- Current Rating: 16A (cos =1), 3A (cos=0.6)
Properties
Properties
| Technology | KNX |
| Brand | THEBEN |
| Outputs | 8 |
| Mounting Width | 4MW |
| EAN | 400346 8493069 |
