KNX BAOS Module
Product code:
5171

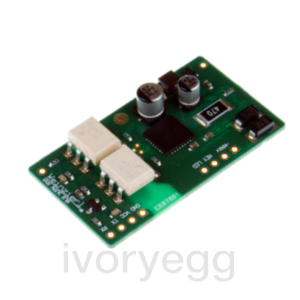

BAOS Modules from Weinzierl are a cost effective way to make devices KNX-capable. The modules serve as a serial interface to KNX. The compact KNX BAOS 830 as pin compatible successor to the proven module 820 provides support for up to 1,000 data points. The module includes a certified KNX stack (System B) and can be configured with the ETS. A generic ETS database allows a quick start. Individual ETS entries can be created. For developers, a BAOS Development Board with a Cortex M0+ controller and sample code is available. The free version of Net’n Node 5 supports the new module.
Description
The BAOS modules integrate a complete KNX node including a transceiver and a microcontroller running the certified Weinzierl KNX Stack. Possible applications for the modules are the integration into sensors, actuators, communication and even visualization devices. Communication with the modules takes place via the serial BAOS protocol in FT1.2 frame format. In addition, the FT1.2 protocol enables the transmission and reception of KNX telegrams in the cEMI (Common External Message Interface) format.
Technical Details
Specification
- Dimensions (L x W): 44 x 25 mm
- External supply for isolated UART 3.3….5 V DC
- Bus current consumption: 3 mA
- External pins: 2.54mm pin header KNX Bus +/-, Learn key, Learn LED, Power supply GND/VCC, UART TX/RX
Properties
Properties
| Brand | WEINZIERL |
| Technology | KNX |
