ZENNIO
ZIORQ8V2

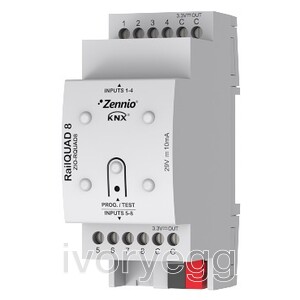

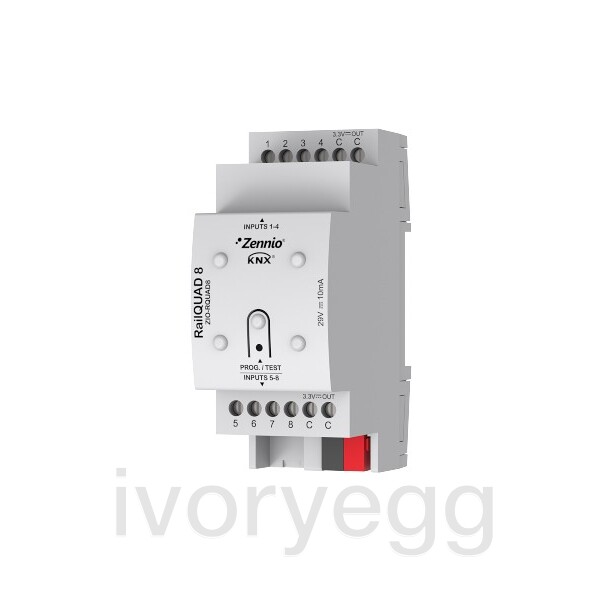

RailQUAD 8 v2. Input module with 8 analog-digital inputs for DIN rail with status indicator LEDs.
Product code:
ZIORQ8V2
The analog/digital inputs can be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Six room thermostats for heating/cooling control systems included. It is compatible with KNX Secure. Accessories: Temperature probes and motion sensor.
Description
- 8 analog/digital configurable inputs as binary input, temperature probe (NTC with customizable curve, PT1000 or Ni1000) or motion sensor
- With input status LED indicators
- KNX Data Secure supported
- 6 thermostats
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- No external supply required different from bus
- Dimensions 67 x 90 x 35 mm (2 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
Technical Details
Specification
Number of inputs: 8
Inputs per common: 2
Operation voltage: 3.3 VDC in the common
Operation current: 1 mA @ 3.3 VDC (per input)
Switching type: Dry voltage contacts between input and common
Connection method: Screw terminal block (0.4 Nm max.)
Cable cross-section: 0.5-2.5 mm² (IEC) / 26-12 AWG (UL)
Maximum cable length: 30 m
NTC/PT1000 accuracy (@ 25 °C) ³: ±0.5 °C
Temperature resolution: 0.1 °C
Maximum response time: 10 ms
Properties
Properties
| Brand | ZENNIO |
| Technology | KNX |
| Mounting | DIN Rail |
| Inputs | 8 |
| IP rating | IP20 |
| Mounting Width | 2MW |
