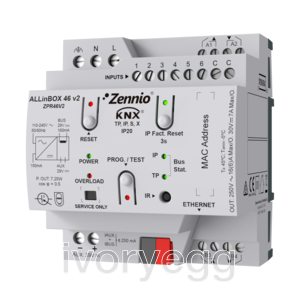

ALLinBOX 46 v2. Multifunction device
Description
- 160 mA KNX power supply with 29 VDC auxiliary output
- 110-240 VAC 50/60 Hz power input
- Supports KNX Data Secure
- Power generation for the KNX system (with LED indicator)
- Short-circuit and overvoltage protection
- Reset button and overload status LED
- KNXnet/IP tunnelling protocol (up to 5 connections)
- Maximum APDU length of 254 bytes
- Ethernet 10/100 BaseT IP with RJ45 socket
- 1 configurable output block: shutter channels (up to 2), individual outputs (up to 4) and 2-pipe fan coil control (up to 1)
- Possibility of controlling blinds/shutters with 2 or 3 dry contacts
- Outputs suitable for capacitive loads, maximum 140 µF
- Manual output operation through remote control
- 6 analog/digital inputs
- Climate control for up to 4 rooms
- Output timing
- 20 logic functions
- Clock with NTP support
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 67 x 90 x 79 mm (4.5 DIN units)
- DIN rail mounting according to IEC 60715 TH35, with fixing clamp
- Conformity with the CE, RCM directives (marks on the right side)
Technical Details
Specification
Number of outputs: 4
Output type / Disconnection type: Potential-free outputs through bistable relays with tungsten pre-contact / micro-interruption
Rated current per output: AC 16(6) A @ 250 VAC (4000 VA), DC 7 A @ 30 VDC (210 W)
Maximum load per output: Resistive 4000W, Inductive 1500 VA
Maximum inrush current: 800 A/200 μs, 165 A/20 ms
Different phases connection: Possibility of connecting different phases between outputs of different channels. It is not allowed to connect power supplies of different order, SELV with NO SELV, in the same channel.
Maximum current: 32 A
Maximum current per output: 16 A
Short-circuit protection: NO
Overload protection: NO
Over-voltage protection: NO
Connection method: Screw terminal block (0.4 Nm max.)
Cable cross-section: 0.5-2.5 mm² (IEC) / 26-12 AWG (UL)
Outputs per common: 1
Maximum response time: 10 ms
Mechanical lifetime (min. cycles): 3 000 000
Electrical lifetime (min. cycles): 1 100000 @ 8 A / 25000 @ 16 A (VAC)
Properties
Properties
| Brand | ZENNIO |
