ZENNIO
ZVIFR70X2A

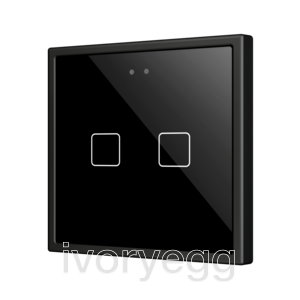

Flat RGB 70 X2. Glass Capacitive push button 70x70 - 2 buttons - Anthracite
Product code:
ZVIFR70X2A
Customisable RGB backlit capacitive touch switches in the Flat family, with proximity sensor and flat design (9 mm), sized 70 x 70 mm, to be combined with 70 x 70 mm frames from Zennio and Jung LS series. Its customisation is printed on a high-strength tempered glass, which allows a total customization of the product background, including images, icons, texts, etc. 1, 2, 4 and 6 button versions available that share the same application program, all with settable functions and RGB backlit icons, that attenuate it when the user is no more detected by its proximity sensor. Flat RGB 70 incorporates an internal temperature probe and a thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. It is compatible with KNX Secure.
Description
- Customizable printed glass touch panel with 1/2/4/6 touch areas with RGB backlight and image customizable through web application
- Supports KNX Data Secure
- Thermostat
- 2 analog/digital inputs
- Built-in temperature sensor
- Touch confirmation through acoustic feedback
- Proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU (TP1-256)
- Dimensions 70.4 x 70.4 x 36.2 mm (it protrudes 9 mm from the wall)
- Portrait or landscape flush mount on standard European, Italian, Australian and American mounting box
- Conformity with the CE, RCM directives (marks on the back side)
Technical Details
Specification
Number of inputs: 2
Inputs per common: 2
Operation voltage: 3.3 VDC in the common
Operation current: 1 mA @ 3.3 VDC (per input)
Switching type: Dry voltage contacts between input and common
Connection method: Pluggable screw terminal block (0.2 Nm max.)
Cable cross-section: 0.2-1.5 mm² (IEC) / 28-14 AWG (UL)
Maximum cable length: 30 m
NTC accuracy (@ 25 °C) ²: ±0.5 °C
Temperature resolution: 0.1 °C
Maximum response time: 10 ms
Properties
Properties
| Brand | ZENNIO |
| Technology | KNX |
| KNX Secure | Yes |
