HDL
MSMW24-KT.11

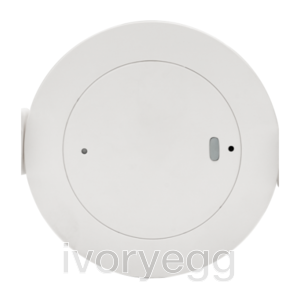

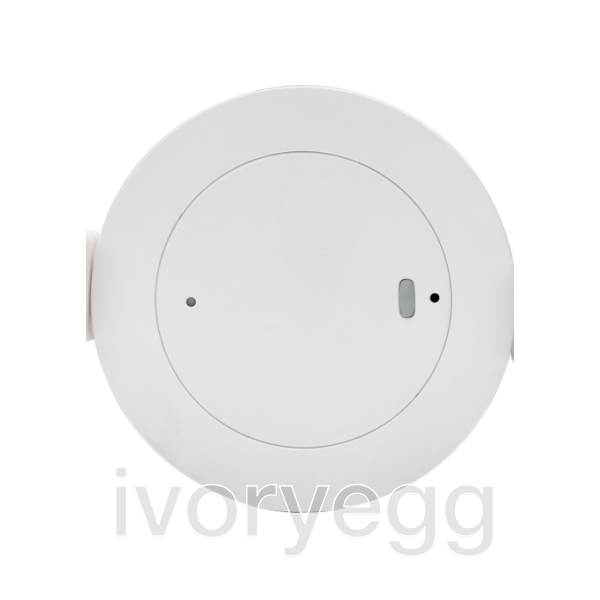

KNX Occupancy Plus Sensor
Product code:
MSMW24-KT.11
Occupancy Plus Sensor is a KNX protocol human presence detection sensor that can accurately detect the human presence status in scenes such as movement and static breathing. Adopting 24GHz millimeter wave radar technology and advanced human detection algorithm, it integrates illumination module, temperature detection module, and 2 dry contact input interfaces. It can be flush mounted, meeting the needs of human presence detection and intelligent device linkage in home, public buildings, hotels and other scenes.
Description
- Human presence detection: 24GHz millimeter wave radar technology, accurate and high sensitivity for detecting human motion and breath.
- Illuminance monitoring: Real time illuminance can be detected by the device, providing smart scene control in accordance with actual illuminance.
- Temperature monitoring: Built-in temperature sensor for monitoring real-time environment status.
- Dry contact input: Supports 2 dry contact inputs for logical judgment.
- Easy lighting control: supports controlling 1 lighting device, supports automatic and semi-automatic control, and controls switches based on environmental illumination.
- Easy HVAC control: Supports controlling 1 HVAC device, with HVAC on/off delay function.
- Constant brightness control: Supports one constant brightness automatic adjustment function module, which automatically senses environmental brightness and adjusts dimming values.
- 2 working modes: Single mode and master/slave mode. One master sensor can have 15 slave sensors, providing wide range of detection.
- Logic settings: 5 independent logic modules, each of which can control 10 targets, including switches, dimming, alarm devices, etc.
- Logical input conditions: human body detection status, illuminance value, temperature value, dry contact input, external message, threshold comparator.
- 3 logical relations: AND, OR, XOR.
- Control types: switch control, absolute dimming control, curtain control, alarm control, percentage control, sequence control, scene control, string (14 byte) control, threshold control and logical combination control.
- External messages can alter the validity of logic.
- Support KNX Data Secure.
Technical Details
Specification
Rated voltage: 30V DC
Rated current: 50mA/30V DC
Input voltage: 21 - 30V DC
Dry contact: 2 dry contacts
Communication protocol: KNX
Cable diameter of KNX terminal: 0.6 - 0.8mm
Detection frequency for micro motion: 24GHz-24.25GHz
Detection range for micro motion (radius): 0.5-4m, adjustable (Note: Installation height is 3m.)
Detection range for illuminance: 0-1200Lux
Detection range for temperature: -20°C-60C°
Working temperature: -5℃-45℃
Working relative humidity: ≤90%RH, non-condensed
Storage temperature: -20℃-60℃
Storage relative humidity: ≤93%RH
Dimensions of installation for surface-mounted: Φ66 x 34.6mm (Opening size: Φ60mm)
Dimensions of installation for flush-mounted: Φ48.5 x 27.5mm
Installation height (recommended): 2.5-3.5m
Properties
Properties
| Brand | HDL |
| Technology | KNX |
| KNX Secure | Yes |
